Process & Chemical Industries
Electrical systems for continuous process control, protection and plant safety.
Process and chemical plants depend on electrical systems that keep instrumentation, control, protection and safety functions available throughout continuous production. Process disturbances, equipment trips or loss of auxiliary supply can affect plant operations and connected systems. Chhabi Electricals provides AC and DC power solutions for process environments, supporting control systems, emergency shutdown functions, battery-backed protection, distribution and plant monitoring.
Electrical Demands of Continuous Process Operations
Process plants bring together instrumentation, control systems, motors, protection equipment and safety functions that operate together across production areas. Their electrical infrastructure needs to support these systems through normal operation, process disturbances and equipment shutdown conditions.
Key priorities include:
Stable Supply for Control Systems
Process controllers, instrumentation and associated electronic systems require a regulated electrical supply for consistent operation.
Availability of Safety Functions
Emergency shutdown, protection and alarm systems need dependable auxiliary power when abnormal process conditions occur.
Continuous Instrumentation Support
Field instruments, control equipment and monitoring systems depend on available power to maintain visibility of process conditions.
Motor & Process Equipment Support
Pumps, compressors, fans and other electrically driven equipment require appropriately designed distribution and control infrastructure.
Fault Detection & Isolation
Electrical faults need to be detected and isolated without unnecessarily affecting other sections of the plant.
Maintenance Without Process Disruption
Critical electrical and battery systems should be accessible for testing and maintenance while limiting interruption to plant operations.
Systems That Keep Process Operations Controlled
Process plants depend on several electrical layers working together rather than relying on a single backup system.
DC Control Supply
Provides regulated DC supply for designated control, protection, instrumentation and safety-related loads.
UPS-Backed Equipment
Supports critical electronic and control equipment during interruptions or disturbances in the normal AC supply.
Motor & Process Distribution
MCC and PCC systems distribute and control electrical power for motors and other plant equipment.
Battery Backup
Stores energy for essential DC loads and supports them when the normal source is unavailable.
Alarm & Indication Systems
Annunciators provide visual indication of process and equipment alarm or trip conditions.
Electrical Monitoring
Battery and electrical monitoring systems provide information on system condition, faults and developing issues.
Power Generation & Utilities
Applications
Chemical Processing Plants
DSP-based regulation supports stable DC supply to safety and emergency shutdown systems, with RS-485 integration and VRLA compatibility for controlled battery charging in sensitive process environments.

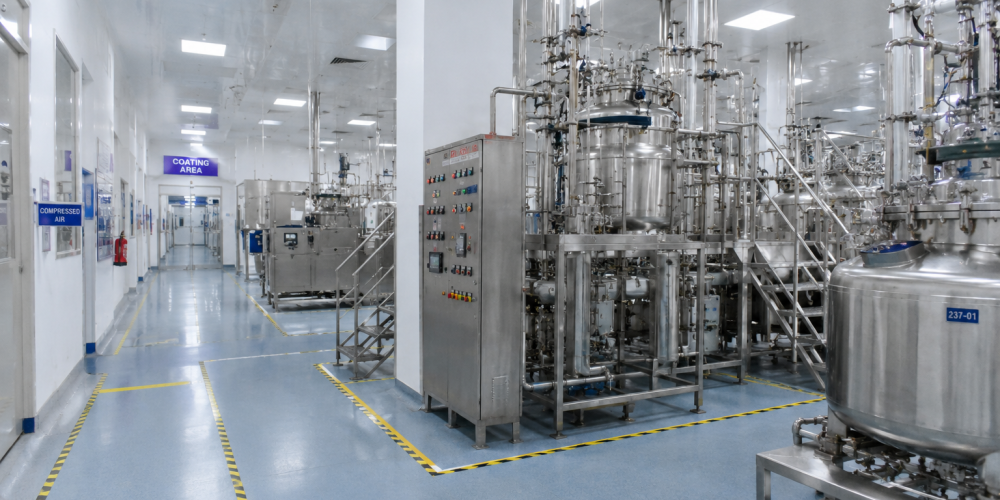

Pharmaceutical GMP Facilities
Provides documented IEC 61439 construction, defined separation forms, and monitored motor feeders for GMP utilities, with communication interfaces enabling integration with plant automation systems.
Textile Mills
Handles VFD-driven spinning, weaving, and air-jet loom equipment with segregated feeders that simplify maintenance while keeping adjacent production systems energised.
Paper & Pulp Mills
Controls starting of DC motors used in digesters, press sections, rewinders, and effluent pumps, helping prevent sudden torque loading that can affect rolls, couplings, and paper web continuity.

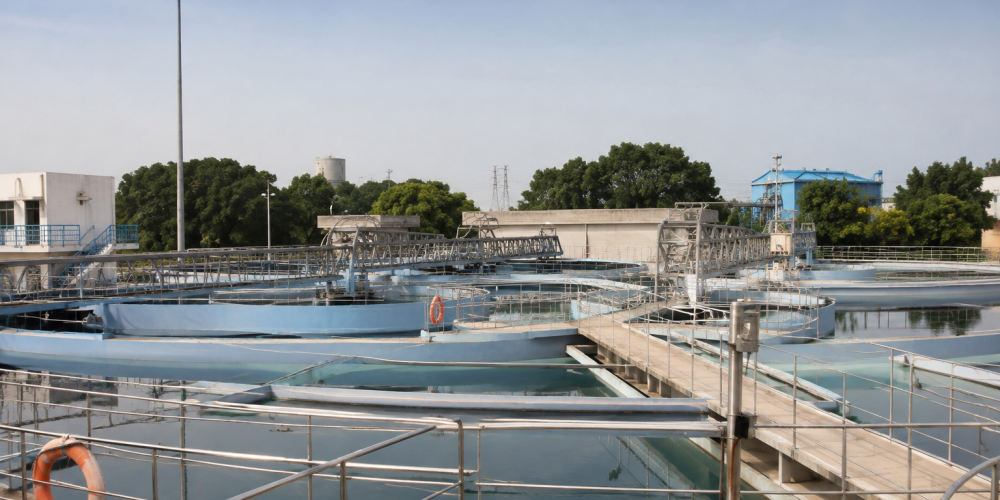

Water Treatment Plants
Manages signals from flow meters, analysers, dosing systems, pumps, and control valves across water treatment facilities. High terminal capacity and suitable enclosure protection support organised wiring in process areas.

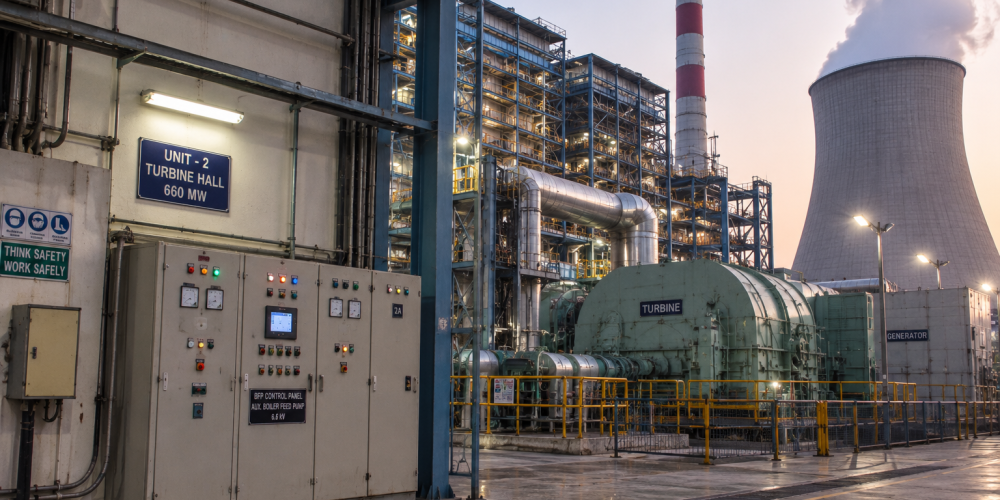

Power Generation Plants
Detects developing earth faults across DC circuits supporting generator protection, turbine controls, and plant safety systems, giving electrical teams early warning before insulation deterioration becomes a functional risk.
What Shapes the Electrical Architecture
The electrical arrangement of a process or chemical plant depends on the process loads, safety requirements, operating environment and required backup performance.
01
Critical Control Loads
Control systems, instrumentation, protection equipment and emergency functions can have different electrical requirements. Their actual load profile needs to be considered while configuring the auxiliary system.
02
Process Safety Functions
Emergency shutdown and protection-related systems may need independent or battery-backed supply to remain available when the normal source is affected. Chhabi’s chemical-process application specifically identifies stable DC supply for safety and emergency shutdown systems.
03
Motor Starting & Distribution
Process plants contain pumps, fans, compressors and other motor-driven equipment. MCC/PCC systems and associated protection need to be selected according to motor ratings, starting characteristics and plant distribution requirements. Chhabi’s MCC solutions are designed around varying motor starting and operating loads.
04
Battery & Charger Configuration
Charger voltage, current capacity, battery chemistry and connected DC load influence the configuration of the standby DC system. Chhabi’s charger range supports multiple DC voltages and battery types, including Lead-Acid, VRLA, Ni-Cd and Li-ion.
05
Plant Environment
Process facilities can expose electrical equipment to temperature, humidity, dust, vibration and other operating conditions. Equipment selection and enclosure arrangements therefore need to reflect the actual installation environment.
06
Alarm & System Visibility
Charger status, battery condition, electrical faults and process alarms need to remain visible to operators and maintenance teams. Chhabi’s annunciator and monitoring solutions are designed for fault indication and system condition visibility.
Technologies for Process & Chemical Facilities
Chhabi Electricals’ covers the DC, AC, distribution, monitoring and battery-maintenance requirements relevant to process environments.
MCC & PCC Panels
MCC and PCC systems support motor control, distribution and protection across process plant electrical infrastructure.
ACDB, DCDB & Battery Isolation
ACDB, DCDB and battery isolation solutions support controlled distribution and isolation of critical electrical circuits.
Monitoring & Annunciation
BHMS, ELMS and annunciator systems provide information on battery condition, earth leakage, faults and alarm conditions.
Battery Testing & Maintenance
Cell boosters, battery dischargers, DC load banks and regenerative load banks support battery testing and maintenance activities.
Operational Issues in Process & Chemical Plants
Continuous process environments create electrical challenges where loss of control, protection or safety-related systems can have consequences beyond a single piece of equipment.
Process Disturbances
Electrical disturbances can affect instrumentation, control and monitoring equipment connected to the process.
Control System Dependency
Modern plants rely heavily on electronic control, automation and instrumentation to monitor and regulate continuous processes.
Emergency Shutdown Availability
Safety and shutdown functions need to remain available when abnormal process conditions require equipment to move to a safe state.
Battery Degradation
Battery ageing and changing operating conditions can reduce available backup capacity if systems are not periodically assessed.
Motor & Load Variations
Pumps, compressors, fans and other process equipment can create changing electrical loads and demanding motor-starting conditions.
Maintenance Windows
Inspection and servicing must often be coordinated with plant operating schedules to avoid unnecessary production interruption.
Why Chhabi Electricals for Process & Chemical Industries
DC Systems for Critical Process Loads
Chhabi Electricals DC charger solutions provide regulated DC supply and battery charging for critical industrial loads, including chemical processing and emergency shutdown systems.
Multiple Charging Technologies
Chhabi Electricals offers multiple charger technologies to meet varying DC voltage, current and battery requirements across industrial applications.
Control & Distribution Infrastructure
MCC/PCC, ACDB/DCDB, battery isolation, marshalling boxes and junction boxes extend the solution beyond the charger to associated electrical distribution and control infrastructure.
Plant Monitoring & Alarm Systems
BHMS, ELMS and annunciator solutions provide additional visibility into battery condition, earth leakage, faults and alarm conditions.
Battery Lifecycle Support
Battery testing, cell boosting and load-bank solutions support inspection and maintenance of standby battery systems, helping plants assess battery condition as part of ongoing maintenance.
FAQ
Frequently Asked Questions
Q1. What role does a battery charger play in a process plant?
A battery charger maintains the connected battery bank during normal operation while supplying the required DC load. The battery can then support designated loads when the normal source is unavailable.
Q2. Which process plant systems may require backup power?
Requirements vary by plant, but critical systems can include control equipment, instrumentation, protection circuits, emergency shutdown systems, alarms and communication equipment.
Q3. Why are MCC and PCC systems important in process industries?
MCC and PCC systems support electrical distribution and motor control across process facilities. MCCs are particularly relevant where multiple motors have different starting and operating requirements.
Q4. How should batteries for process plant DC systems be maintained?
Battery maintenance can include condition monitoring, inspection, charging checks and capacity testing. Chhabi provides battery health monitoring, cell boosters, battery dischargers and load-bank solutions for battery maintenance.
Q5. How can Chhabi Electricals support process and chemical industries?
Chhabi Electricals provides DC charger systems, AC UPS, MCC/PCC panels, ACDB/DCDB, battery isolation, monitoring, annunciation and battery maintenance solutions for industrial applications. Its charger portfolio specifically includes chemical processing plant applications supporting safety and emergency shutdown systems.
