Power solutions for reliable control, protection and grid operations.
Power generation and utility infrastructure depends on electrical systems that must remain available during normal operation, switching events and supply disturbances. Generation plants, substations and grid facilities rely on auxiliary AC and DC systems to support protection, control, monitoring, communication and essential equipment. Chhabi Electricals provides engineered solutions for these requirements, with systems configured around the electrical loads, battery requirements and operating conditions of each installation.
Generation plants and utility networks require more than a continuous incoming supply. Their auxiliary electrical infrastructure must support protection and control equipment, switching operations, plant automation and communication systems while remaining available during disturbances.
Essential control, protection and monitoring systems require dependable auxiliary power during normal and abnormal operating conditions.
Protection relays and associated equipment need a stable supply to respond when faults or abnormal electrical conditions occur.
Substation and plant switchgear depends on dependable DC systems for critical trip and closing operations.
Proper distribution and isolation help contain faults and protect connected equipment within the auxiliary system.
Monitoring of batteries, chargers, alarms and electrical parameters supports timely identification of developing issues.
Chargers, battery banks and auxiliary systems need to be accessible for inspection, testing, maintenance and replacement without unnecessary operational disruption.
Power generation and utility facilities bring together multiple electrical systems that must work together to maintain plant and grid operations.
Provides regulated DC supply for essential control, protection and switching loads.
Supports protection relays, control circuits and equipment that must remain available during electrical disturbances.
Supports the auxiliary electrical requirements of substations, including control, monitoring and communication systems.
Stores energy for essential DC loads when the normal auxiliary source is unavailable.
Provides backup supply for critical AC loads where continuity is required for plant or utility operations.
Provides visibility into battery condition, electrical faults, alarms and other operating parameters.

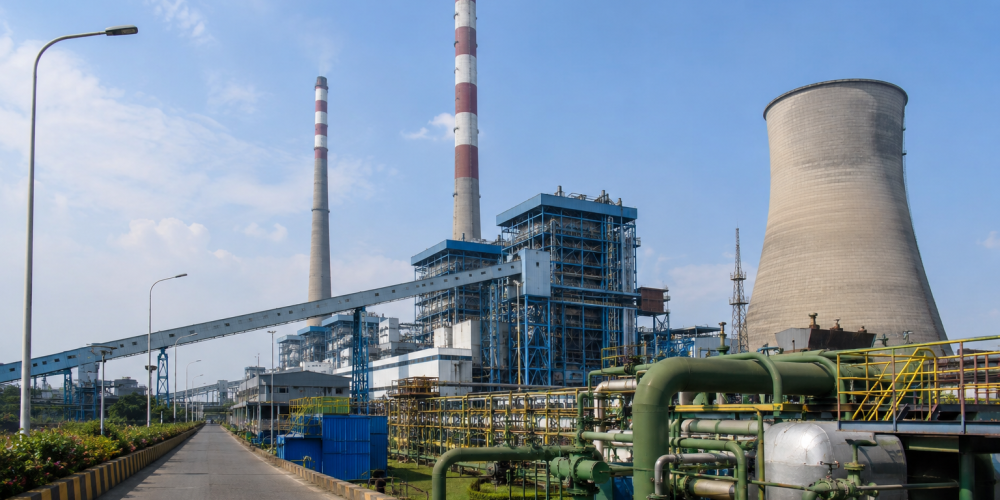

Maintains battery-backed DC supply for turbine controls, protection relays, shutdown systems, and other essential plant functions during power interruptions.

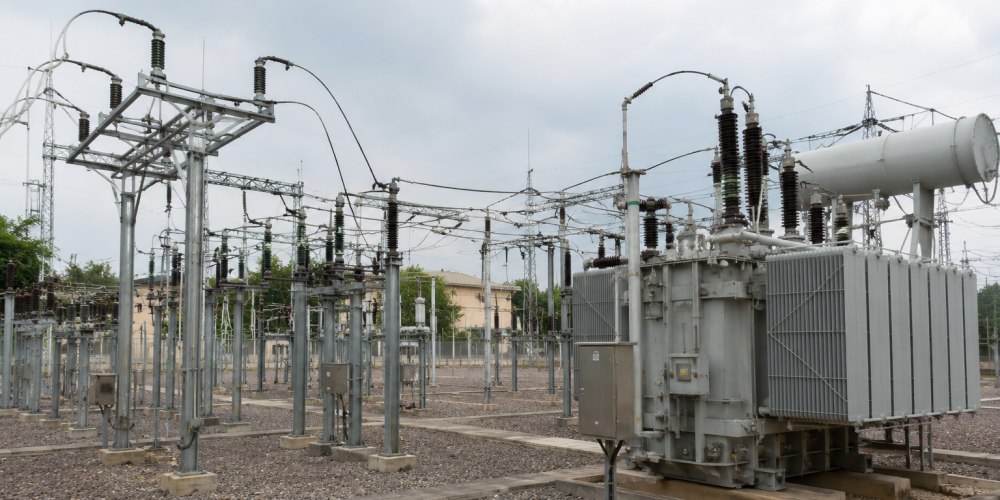

Supports protection relays, circuit-breaker operations, SCADA equipment, and communication systems through a dependable station battery and DC supply.

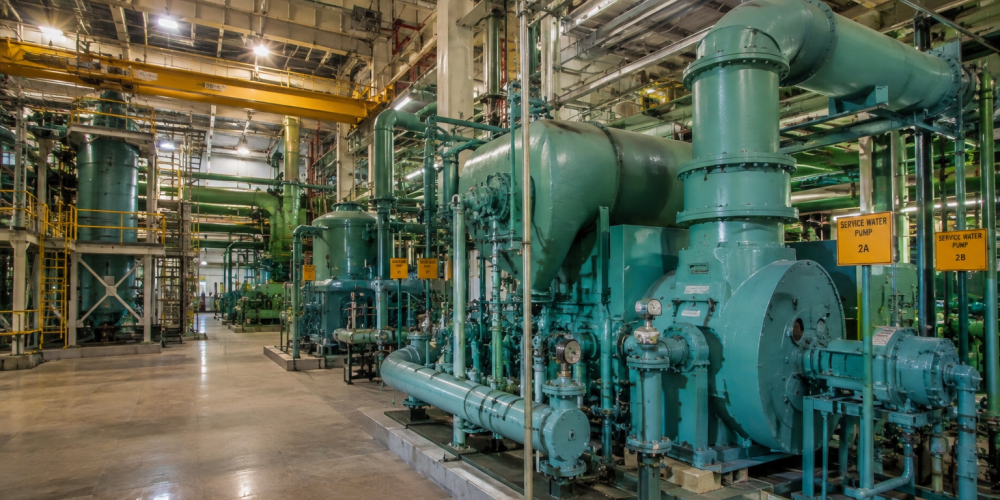

Supports critical reactor protection, emergency cooling, and auxiliary systems with tightly regulated DC power, redundant charging arrangements, and protection for essential NiCd battery banks.

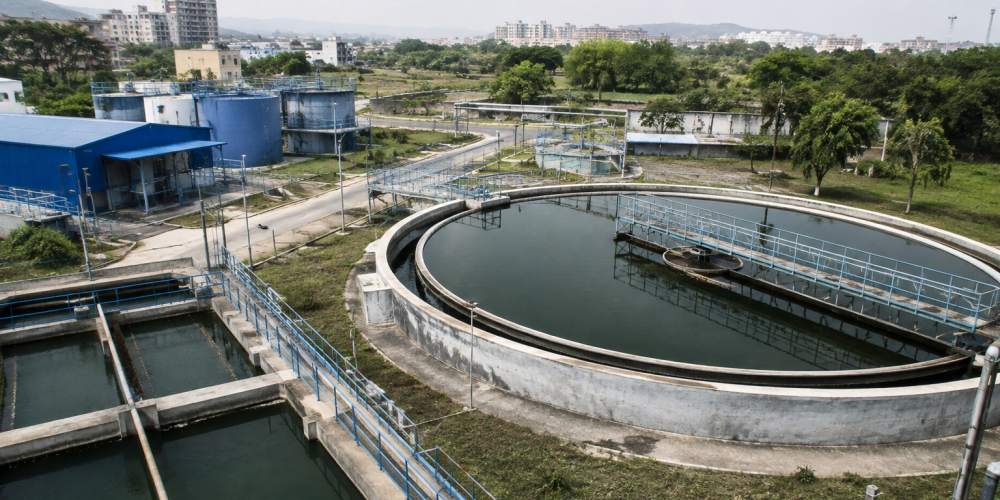

Manages starting of main supply, booster, and sludge-handling pumps while limiting torque stress on pump assemblies and providing overload protection against abnormal operating conditions.
Displays differential, reverse power, rotor earth fault, loss of excitation, frequency, AVR failure, and inter-trip alarms, giving operators a clear indication of the protection function that initiated a generator trip.
Provides dependable DC backup for airfield lighting controls, ATC communication systems, ILS support equipment, and boarding infrastructure where power continuity is essential.
The electrical architecture of a generation plant or utility installation depends on the connected loads, operating conditions and required backup performance.
Protection relays, control circuits, breaker mechanisms, automation and communication equipment can place different demands on the DC system. Charger and battery capacity therefore need to reflect the actual connected load.
Battery selection and sizing depend on the required DC loads, operating duty and expected backup duration. The battery bank must provide sufficient stored energy when the normal source is unavailable.
The charger must support the normal DC load while maintaining the battery in the required charging condition. Charger configuration also depends on voltage, current, battery chemistry and site requirements.
Substation DC systems may need to support protection equipment as well as breaker trip and closing operations. These duty requirements need to be considered while configuring the DC system.
Temperature, humidity, dust and other site conditions can influence equipment selection, enclosure requirements and battery performance, particularly in outdoor substations and generation facilities.
Battery condition, charger operation, earth leakage and system alarms can be monitored to support preventive maintenance and reduce the risk of unnoticed degradation.
Chhabi Electricals’ covers DC, AC, battery maintenance, distribution and monitoring requirements relevant to generation plants and utility infrastructure.
Battery isolation boxes, ACDB/DCDB panels and associated distribution solutions help manage and protect auxiliary electrical circuits.
BHMS, ELMS, annunciators, cell boosters and battery load-testing solutions support battery condition, fault indication and maintenance activities.
MCC/PCC panels, marshalling boxes, feeder pillars and junction boxes support electrical distribution, control and field connections.
DC load banks, regenerative load banks and related battery maintenance equipment help assess battery performance and support maintenance programs.
Generation plants and utility networks face operating conditions where a failure in an auxiliary system can affect protection, control or switching functions.
Voltage disturbances or loss of the normal auxiliary source can affect essential control and monitoring equipment.
Protection systems depend on available auxiliary supply to perform their intended functions during electrical faults.
Breaker trips and closing operations can place specific demands on the station DC system during critical events.
Battery performance can decline over time, making condition assessment and periodic testing important for standby readiness.
Generation and utility facilities may have auxiliary systems distributed across control rooms, switchyards and equipment areas.
Inspection, testing and replacement activities need to be planned carefully to maintain availability of essential systems.
Chhabi Electricals provides engineered DC and auxiliary power solutions designed around the operational requirements of generation plants, substations and utility infrastructure.
Solutions are configured around the DC loads, battery requirements and operating conditions of generation plants, substations and utility installations.
Chhabi Electricals offers thyristor, digital, SMPS modular and IGBT charger technologies for different DC system requirements.
The portfolio extends beyond chargers to include UPS systems, distribution panels, battery isolation, monitoring and battery maintenance equipment.
Battery monitoring, load testing, cell boosting and related maintenance solutions help support the operational readiness of station battery systems.
Project solutions, technical training, remote diagnostics, modernization and maintenance services support generation and utility installations beyond initial equipment supply.
DC systems provide an independent auxiliary supply for essential loads such as protection relays, control circuits, monitoring equipment and breaker operations. The battery-backed system can continue supplying designated loads when the normal auxiliary source is unavailable.
A station battery charger maintains the connected battery bank during normal operation while also supplying the required DC load. The battery can then provide stored DC energy to designated essential loads during an interruption.
Substation DC systems can support protection relays, control circuits, breaker trip and closing circuits, annunciation, communication and other essential DC-operated equipment. The exact load depends on the substation design and protection scheme.
Selection depends on factors such as DC voltage, connected load, battery chemistry, charger current, backup requirements, operating environment and monitoring or communication requirements.
Chhabi Electricals provides DC charger systems, UPS solutions, battery and DC distribution equipment, monitoring systems and battery maintenance solutions for generation and utility applications. The configuration can be aligned with the electrical and operational requirements of the installation.
