| Specification | Details |
|---|---|
| Rated Voltage | 110VDC / 220VDC |
| Current Rating | Up to 600A |
| Motor Applications | SOP, EOP, JOP |
| Starter Types | Resistance Starter with DC mill-duty contactors (DC-5 duty) |
| Protection Devices | DC mill-duty magnetic overload relays |
| MCCB, HRC fuses, isolators | |
| Starting Resistors: FeCrAl alloy (AISI406), corrosion-resistant and vibration-proof | |
| Enclosure Protection | IP42 / IP54 (indoor) |
| Construction | Fixed type, floor-mounted |
Safe and Efficient DC Motor Control
Chhabi’s DC Starter Panels are purpose-built for 110V and 220V DC motors in power plants, substations, and heavy industries. Designed for high endurance, these panels ensure smooth and reliable operation of critical motors in demanding environments
Designed for DC motor applications where controlled starting, current limiting, overload protection, and smooth torque build-up are essential for protecting drives and connected mechanical equipment.
01
Starts blast furnace blowers, rolling mill drives, ladle cranes, and sinter plant fans with controlled current and torque, reducing mechanical stress during frequent heavy-duty starts.

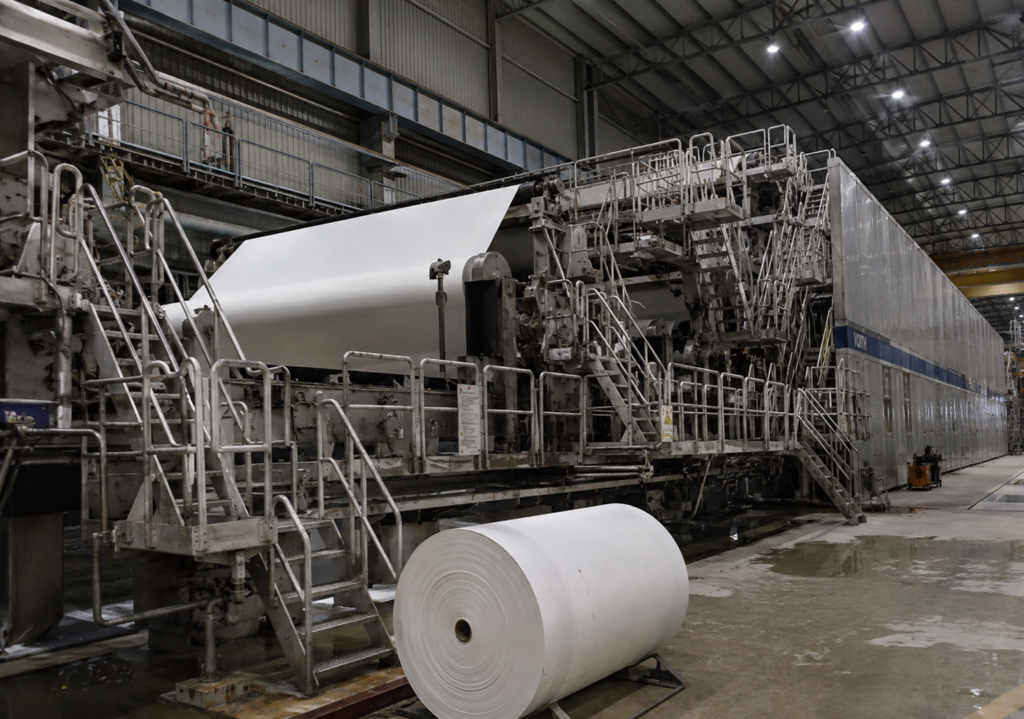

Controls starting of DC motors used in digesters, press sections, rewinders, and effluent pumps, helping prevent sudden torque loading that can affect rolls, couplings, and paper web continuity.

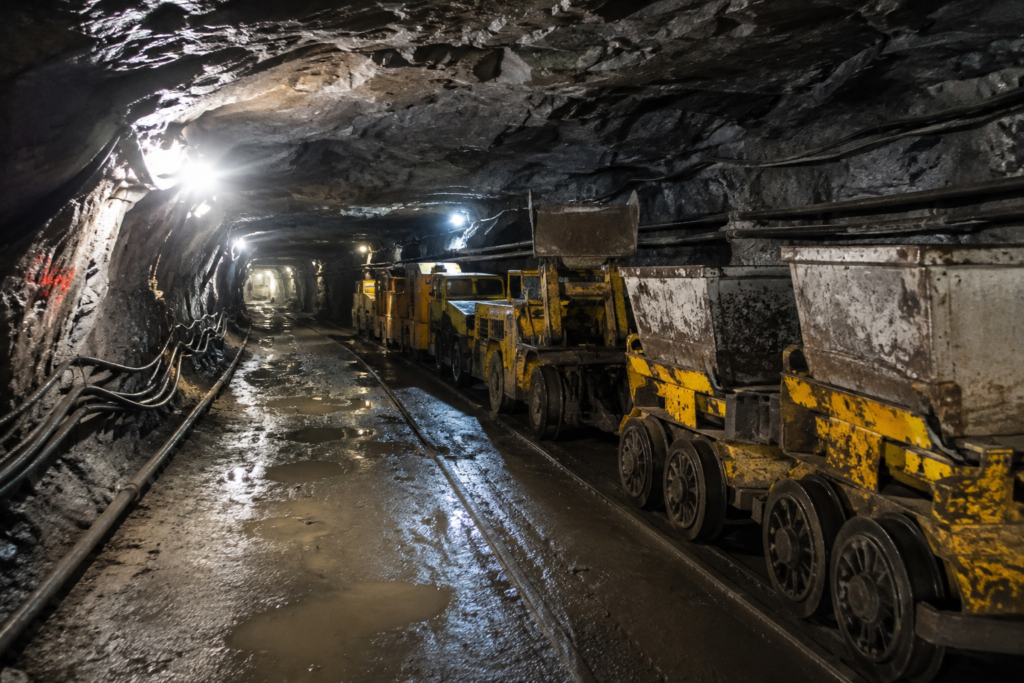

Designed for winding engines, conveyors, and dewatering pumps operating in dusty, humid, and vibration-prone environments, with layered protection against motor overload and electrical faults.
Purpose-built for station oil pumps, emergency oil pumps, jacking oil pumps, and turning gear drives, providing controlled current ramp-up without destabilising the DC bus during critical start-up sequences.
Manages starting of main supply, booster, and sludge-handling pumps while limiting torque stress on pump assemblies and providing overload protection against abnormal operating conditions.
Provides controlled starting for DC motors used in large material-handling and process equipment, limiting starting current and mechanical shock while protecting motors against overload during demanding plant operation.
Supports 110VDC and 220VDC supply with ratings up to 600A.
Specifically designed for SOP, EOP, and JOP motor operations.
Uses DC mill-duty contactors rated for DC-5 duty, ensuring long life and rugged performance.
Integrated mill-duty magnetic overload relays safeguard motors from overcurrent and electrical faults.
Equipped with FeCrAl (AISI406) chromium steel alloy resistors that are corrosion-resistant and vibration-proof.
Built for harsh environments in power plants and process industries
Chhabi Electricals designs DC starter panels with robust components, precise control mechanisms, and built-in protection features tailored for heavy-duty industrial environments. Each unit is customized to meet specific operational requirements, ensuring safe, efficient, and uninterrupted motor performance on the field.
A DC starter panel is an electrical control unit used to safely start, stop, and protect DC motors. It ensures smooth motor operation while preventing overload and electrical faults.
DC starter panels are widely used in industries like manufacturing, power plants, cranes, and heavy machinery where controlled DC motor operation is required.
A DC starter panel helps control the starting current of the motor, protecting it from sudden electrical stress and damage. It ensures smooth operation, improves system efficiency, and supports reliable performance in industrial control panels.
DC starter panels are equipped with essential safety features like overload protection, short circuit protection, and proper circuit breakers. These components help prevent electrical damage, ensure safe motor operation, and enhance the reliability of industrial control panels.
Choosing the right DC starter panel depends on motor rating, load requirements, application type, and environment. It's also important to ensure proper protection features and build quality. Chhabi Electricals can help select the right panel for your needs.
Yes, DC starter panels are built to handle heavy-duty applications and demanding industrial environments. High-quality panels are designed with robust components to manage high motor loads, ensure stable performance, and provide reliable protection during continuous operations.
Yes, Chhabi Electricals offers a wide range of industrial control panels, including DC starter panels, designed for efficient performance and long-term reliability. Their panels are built using quality components to meet various industrial requirements and ensure safe operation.
When selecting a DC starter panel supplier, it's important to check product quality, reliable components, and protection features like overload and short circuit protection. Chhabi Electricals offers technical support, customization options, and timely delivery for efficient industrial control panel solutions.
A DC starter panel controls the extra current at the time of motor start, which helps avoid sudden jerks and damage. It ensures smooth running, better efficiency, and increases the life of the motor in industrial applications.
