| Specification | Details |
|---|---|
| Input Voltage Range | 1-Phase: 230V AC (±10%) / 3-Phase: 415V AC (±10%) |
| Input Frequency | 50 / 60Hz (±5%) |
| Power Factor | > 0.99 at full load |
| Input Harmonics (THDi) | < 3% |
| Soft Start | Available |
| Rectifier Type | IGBT-based, high-frequency PWM |
| Efficiency | ≥ 96% |
| Charging Capacity | Adjustable 0–100% of rated current |
| Battery Compatibility | VRLA, Lithium-Ion, NiCd |
| DC Voltage Ripple | < 1% |
| Specification | Details |
|---|---|
| Input Voltage | 1-Phase: 230V AC / 3-Phase: 415V AC |
| Output Voltage | 1-Phase: 230V AC (±1%) / 3-Phase: 415V AC (±1%) |
| Output Frequency | 50/60Hz |
| Waveform | Pure sine wave |
| THD | < 2% (linear load), < 5% (non-linear load) |
| Overload Capacity | 125% for 10 min, 150% for 1 min |
| Crest Factor | 3:1 |
| Efficiency | ≥ 90% |
| Load PF Compatibility | 0.7 lag to 0.99 lead |
| Technology | IGBT PWM-based inverter |
| Auto Synchronization | With bypass supply |
| Parallel Redundancy | Optional (N+1) |
| Dynamic Response | ≤ 20ms for 100% load step |
| Cold Start | Supported |
| Configurations | 1Ø–1Ø, 3Ø–3Ø, 3Ø–1Ø, 1Ø–3Ø |
| Protection Features | Overload, short circuit, OV/UV, overtemperature, phase imbalance |
| Specification | Details |
|---|---|
| Type | Fully static, IGBT-based |
| Transfer Time | ≤ 4ms (online), ≤ 0ms (double conversion) |
| Bypass Voltage Range | ±15% |
| Overload Capability | 125% for 10 min, 150% for 1 min, 1000% for 1 cycle (fault clearing) |
| Auto Re-transfer | Supported |
| Protection Features | Overcurrent, short circuit, synchronization with utility, manual bypass |
| Specification | Details |
|---|---|
| Operating Temperature | 0°C to 50°C (derating above 40°C) |
| Storage Temperature | -20°C to 70°C |
| Relative Humidity | 0–95% (non-condensing) |
| Altitude | ≤1000m (without derating), up to 3000m (with derating) |
| Cooling | Forced air cooling with redundant fans |
| Enclosure Protection | IP20 standard, IP31 optional |
| Compliance | IEC 62040-1/2/3 |
| Category | Details |
|---|---|
| Display | LCD panel with real-time monitoring of input, output & battery parameters |
| Communication Ports | RS232, RS485, MODBUS, USB, SNMP (optional) |
| Remote Monitoring | SNMP-based monitoring |
| Alarm Indications | Audible & visual alarms for warnings and faults |
| Specification | Details |
|---|---|
| Power Ratings | 5kVA – 200kVA |
| Topology | Online double conversion |
| Parallel Redundancy | N+1 configurable |
| Supported I/O Combinations | 1Ø–1Ø, 3Ø–3Ø, 3Ø–1Ø, 1Ø–3Ø |

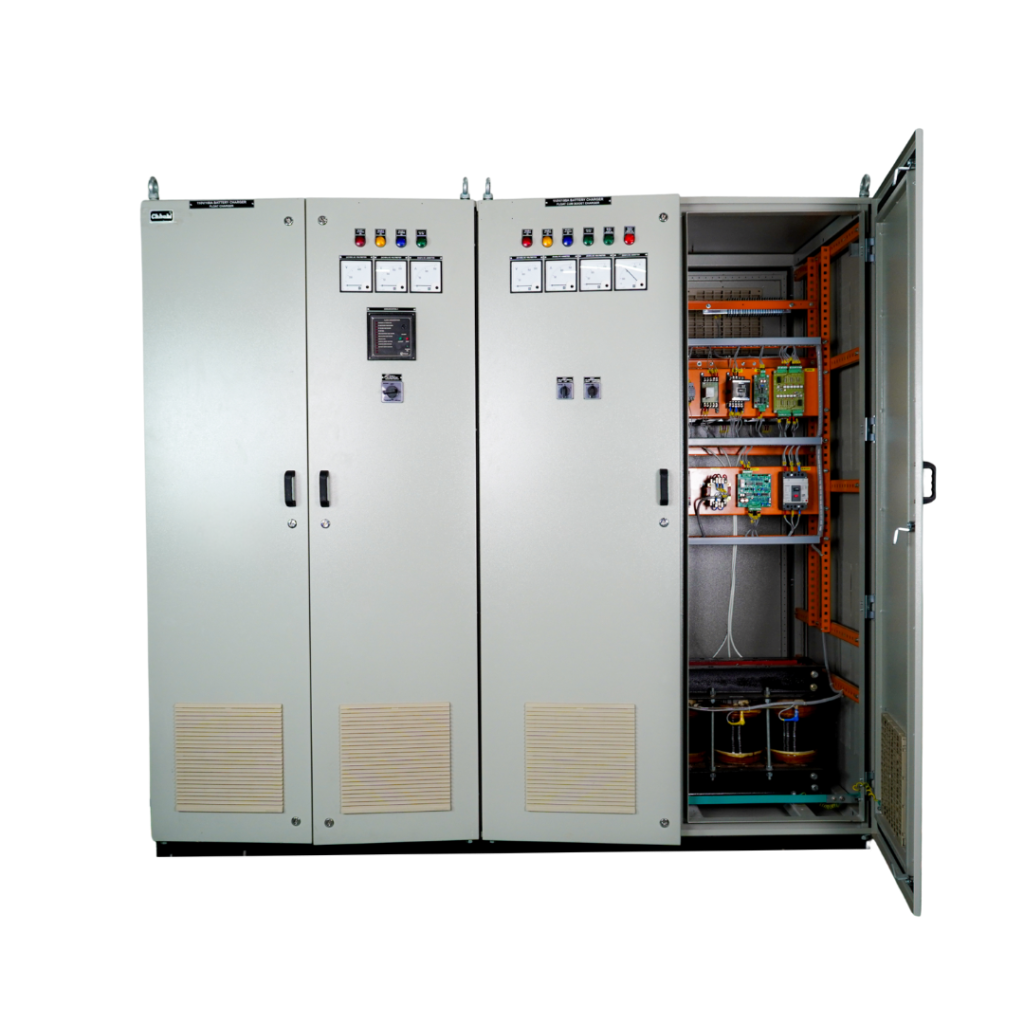

Industrial UPS – Engineered for Reliability, Built for Resilience
At Chhabi Electricals, we understand that even a momentary power interruption can disrupt critical operations. That’s why our Industrial AC UPS solutions are engineered to provide seamless backup, clean power, and intelligent control — safeguarding your systems against outages, surges, and fluctuations. From robust, time-tested designs to advanced digital platforms, we deliver the reliability and performance your operations can always depend on.
Advanced inverter/rectifier design with >90% efficiency.
Wide input tolerance, high fault-withstand capacity.
DSP/IGBT control ensures precise voltage regulation.
Compatible with external BMS for VRLA, Li-Ion, and NiCd.
Input/output isolation transformer for safe operation.
RS485, Ethernet, Modbus, SNMP for SCADA/DCS integration.
IEC/IS compliant, MTBF aligned to global standards
Reliable DC power for control, protection, and backup across thermal, nuclear, hydro, renewable plants, and utility operations.
Industrial UPS systems ensure that critical operations like control systems and automation don't stop even during sudden power failures. In industries, even a few seconds of downtime can impact safety and production, so a reliable backup becomes essential.
Industrial AC UPS systems are designed to handle fluctuating loads, harsh environments, and continuous operation. They come with higher fault tolerance and stable output control compared to normal commercial UPS systems.
A reliable Industrial UPS supplier ensures proper system configuration, smooth integration, and long-term support. Chhabi Electricals focuses on building Aegis Series systems that actually perform well under real industrial load conditions, not just on paper specs.
Stable power ensures that sensitive equipment works without interruptions or damage. Even small fluctuations can impact performance, so UPS systems are designed to maintain consistent output.
Industrial UPS systems instantly shift to backup mode without interrupting the load. This seamless transition is critical in setups where even a momentary break can impact operations or safety.
They are designed to operate in demanding conditions like high temperature, dust, and continuous usage. This makes them suitable for heavy industries and critical infrastructure.
They provide clean and stable power output, reducing the risk of damage caused by fluctuations. This is especially important for sensitive control and automation systems.
Yes, many systems are designed to allow capacity expansion based on future needs. This helps industries upgrade without replacing the entire setup.
Industrial UPS systems are built to handle long operating hours, but proper maintenance and correct sizing play a key role. A well-managed system maintains efficiency and reliability over the long term.
These systems are commonly used where continuous operation is important, such as automation lines, control rooms, and process industries. Chhabi Electricals' Aegis Series is trusted across these sectors for reliable, uninterrupted power support.
