| Parameter | Specification |
|---|---|
| Rated Voltage | 415V AC, 3-Phase, 50Hz |
| Current Rating | Up to 1000A |
| Busbar Fault Level | 50kA for 1 sec (customizable) |
| Feeder Types | MCCB, MCB, SFU, ACB |
| Enclosure Protection | IP42 / IP54 |
| Construction | Mild steel, galvanized steel, or stainless steel with powder coating |

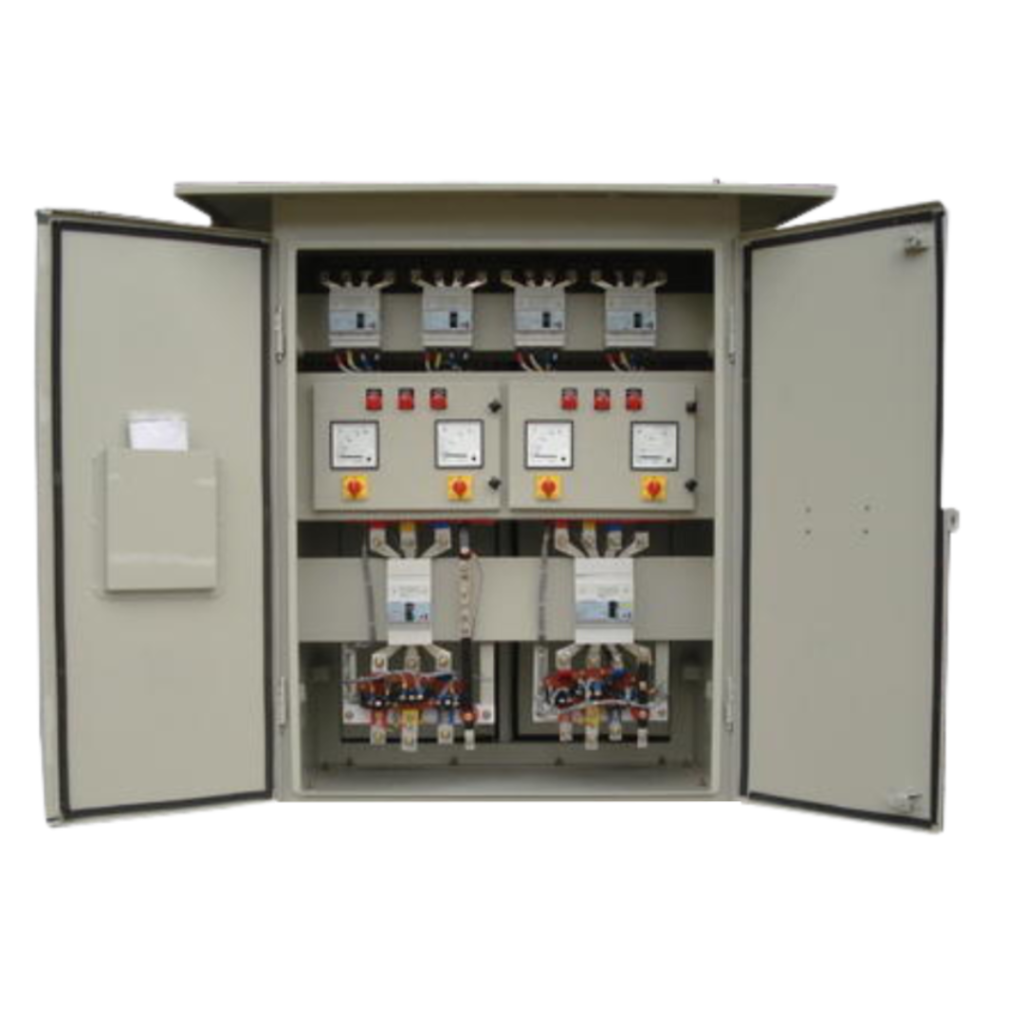

Rugged Outdoor Distribution Systems
Chhabi’s Feeder Pillars are designed for outdoor environments, ensuring safe, reliable, and efficient distribution of electrical power. Widely used in utilities, industrial plants, and complexes, these panels withstand harsh weather conditions while providing easy access and protection for outgoing feeders
Feeder Pillars provide a secure and organised point for distributing electrical power across outdoor installations, with individual outgoing feeders for lighting, equipment, buildings, and other site utilities.
01
Supports organised power distribution for streetlights, traffic signals, surveillance systems, public Wi-Fi, EV charging, and other connected urban utilities. Individual feeder protection allows circuits to be controlled and isolated as required.

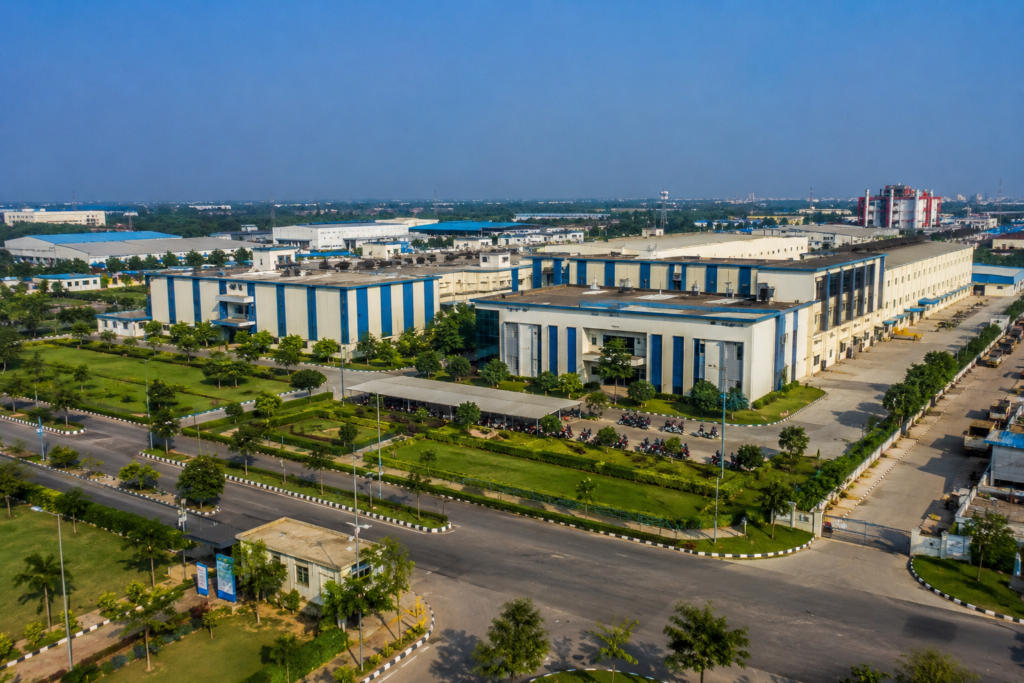

Provides local distribution points for factory plots, staff housing, common facilities, and internal roads across large industrial layouts. Multiple protected feeders help distribute power efficiently from the main supply to different areas.

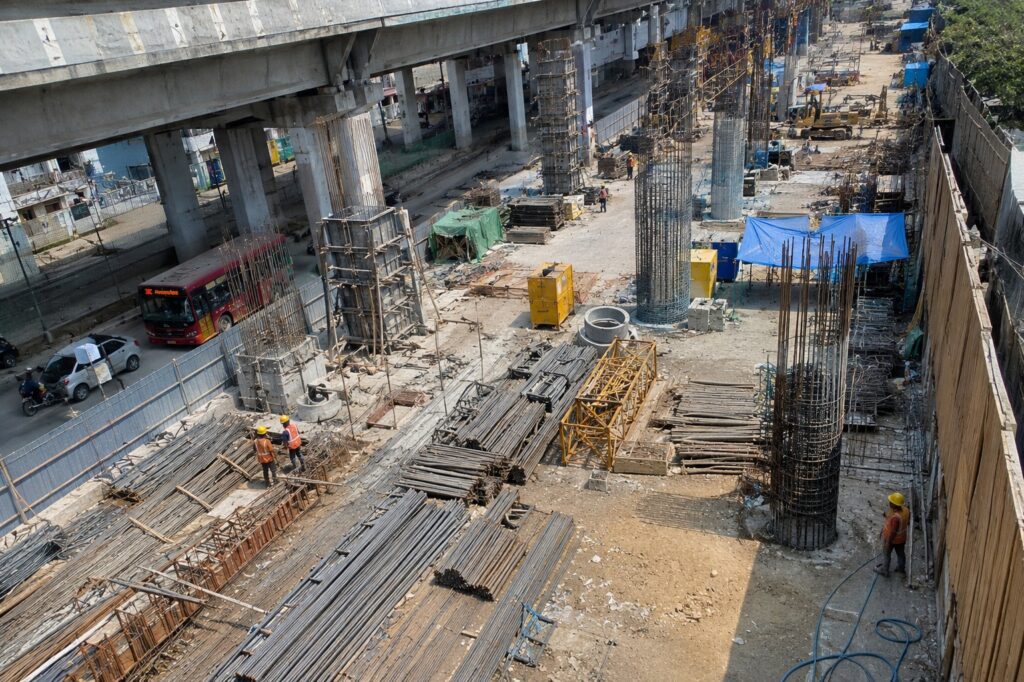

Distributes protected power to construction equipment, cranes, concrete mixers, site lighting, portable tools, and temporary offices. Multiple outgoing feeders make it easier to manage separate loads as the worksite expands or changes.

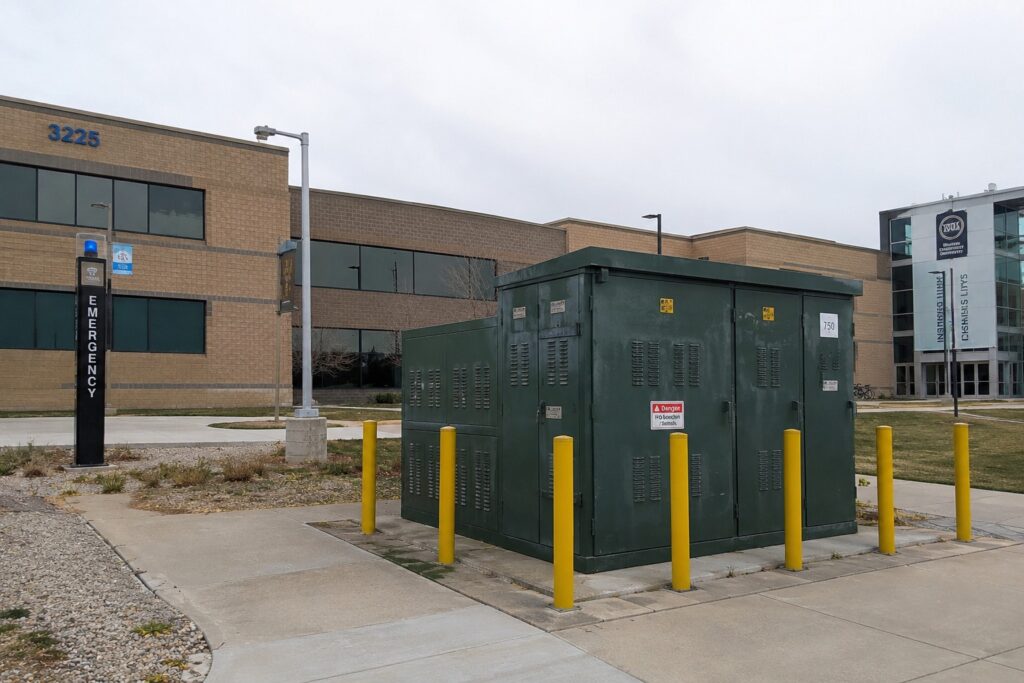

Provides intermediate outdoor distribution for university campuses, hospitals, IT parks, and large commercial complexes. Individual feeders can supply separate buildings, lighting networks, HVAC systems, and other common utilities from a central distribution point.

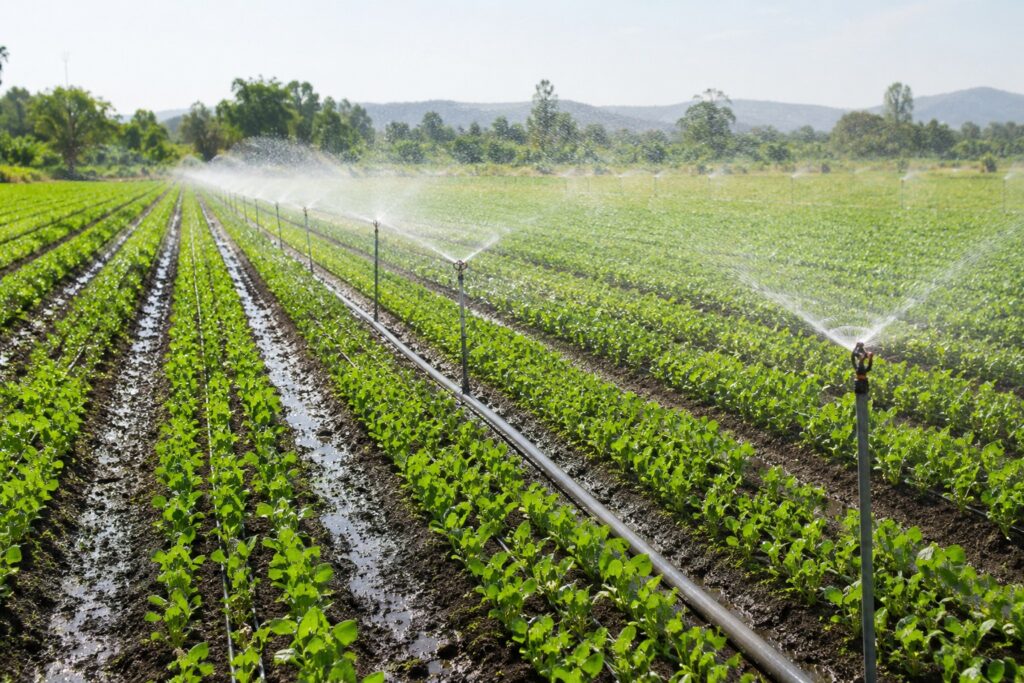

Supplies protected power to irrigation pumps, control equipment, lighting, and auxiliary systems at remote pumping locations. Weather-resistant construction makes the feeder pillar suitable for outdoor agricultural environments exposed to moisture and changing weather.

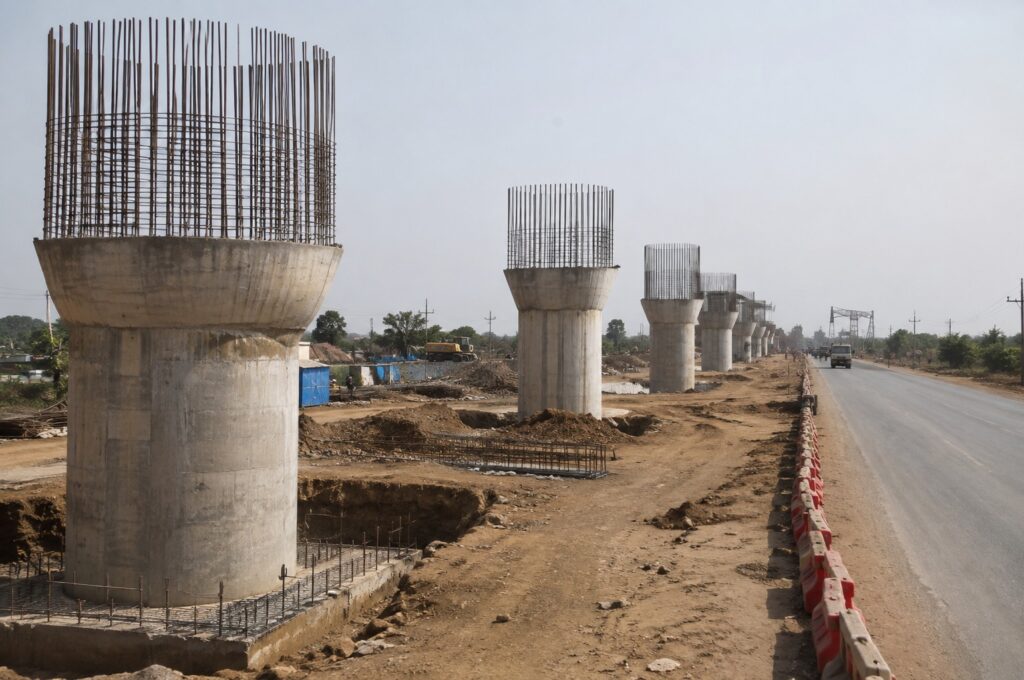

Supports power distribution for highway lighting, toll infrastructure, traffic signals, road monitoring equipment, and other roadside electrical systems. Protected outgoing feeders help isolate individual circuits for safer operation and maintenance.
Weatherproof and dustproof with IP54 / IP65 enclosures.
Multiple outgoing feeder compartments with MCCBs, MCBs, or switch-fuse units.
Built with galvanized steel, CRCA, or stainless steel enclosures for long service life.
Includes padlocking, interlocks, and cable sealing arrangements.
Available with single/double doors and front/rear access options
A Feeder Pillar is an outdoor electrical distribution box used to safely control and distribute power to multiple circuits. It helps manage electricity in a structured and safe way.
It takes power from the main supply and distributes it to different street lights through separate outgoing feeders. This makes lighting control easier and more organized.
Yes, Feeder Pillar Panels are specially designed for outdoor use and can handle tough weather conditions. Their weatherproof enclosure protects internal electrical components from rain, dust, heat, and moisture. This ensures safe and reliable performance even in harsh environments.
They are widely used in street lighting, residential townships, industrial plants, highways, and municipal infrastructure. Any setup that requires outdoor power distribution uses Feeder Pillar systems.
Yes, they can be customized based on the number of feeders, load requirements, protection devices, and project layout. Chhabi Electricals offers customized Feeder Pillar solutions to ensure the panel fits perfectly with each site's electrical needs.
They come with proper earthing, circuit protection devices, insulated wiring, and secure locking systems. These features ensure safe operation and protect both equipment and users.
A professional supplier ensures tested quality, proper safety standards, and long-term durability compared to local fabrication. It reduces the risk of failures and improves overall system reliability in critical applications. Chhabi Electricals provides well-engineered Feeder Pillar solutions designed for safe, long-lasting industrial and outdoor performance.
Chhabi Electricals focuses on durable materials, precise engineering, and strict quality checks. Their Feeder Pillar solutions are designed for long life, safety, and consistent outdoor performance.
You should consider load capacity, number of outgoing feeders, installation environment, and safety protection features. Choosing the right design ensures smooth and safe power distribution. Chhabi Electricals helps in selecting and designing Feeder Pillar Panels as per project requirements.
Yes, they are designed to handle medium to high power loads depending on project requirements. Proper design and protection devices ensure safe load distribution without overload issues.
